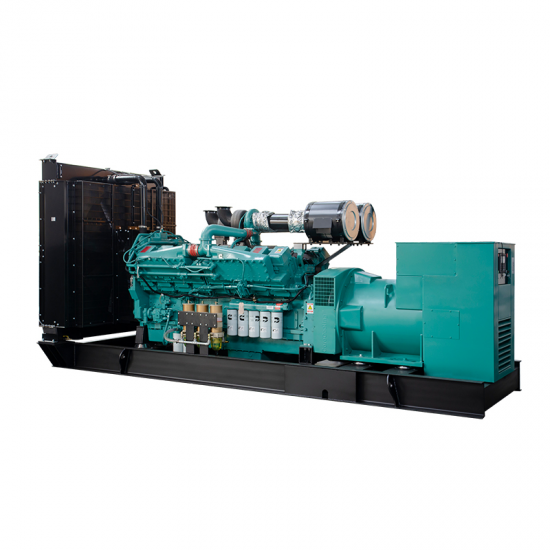

1250kva to 1500kva Cummins diesel engine generator

Cummins Generator Set standard configuration:

1. Assembled by Cummins diesel engine with start motor and world famous alternator.

2. Radiator and fan with safety guard.

3. Heavy duty steel channel base frame with/without fuel tank for your options.

4. Vibration damping supports between Engine/Alternator and base frame.

5. Float Battery Charger and Solenoid Switch as the standard supply.

6. HIgh capacity lead acid battery cables.

7. Automatic control panel and electrically output switch cabinet.

8. Standard tool kits and complete operation manual for the genset,engine,alternator,control system,etc.

Engine:

Cummins Engine has the big power range frim 20kw to 1250kw,50hz and 60hz are both available,produced by two joint-venture companies in China,called Dongfeng Cummins Engine Co from 22kw to 400kw and Chongqing Cummins Engine Co from 200kw to 1250kw.It can provide global warranty and become the most popular sale in the world.

Alternator:
We adopts world famous brand alternator like Leroy-somber,Stamford,Brushless synchronous alternator,based on a variety of operating voltage requirement,optimizing winding design and effectively eliminating the third harmonic voltage,which together with the superior performance of automatic voltage regulator and PMG(optional),in with superior performance in generating non-linear loads.

u From:Single/Double Bearing

u Protection:IP23(IP44 is optional)

u Balance:Rotator balance in accordance with ISO1940 and NFC51-112 standard

u Overspeed:2250rpm

u Insulation:Class H

u Mechanical Structure:Steel base frame

Control sysytem:
We adopt UK Deepsea 6120 as the standard supply model,and Smartgen and Czech Comap is optional,which has below features and protection function:

u Low oil pressure

u High water temperature

u High voltage and low voltage

u Over current and over speed

u Voltage adjuster and frequency adjuster

u Emergency power stop

u Low fuel alarm and shutdown

u Low coolant alarm and shutdown
