Brand New 20kva Perkins New Diesel Generators

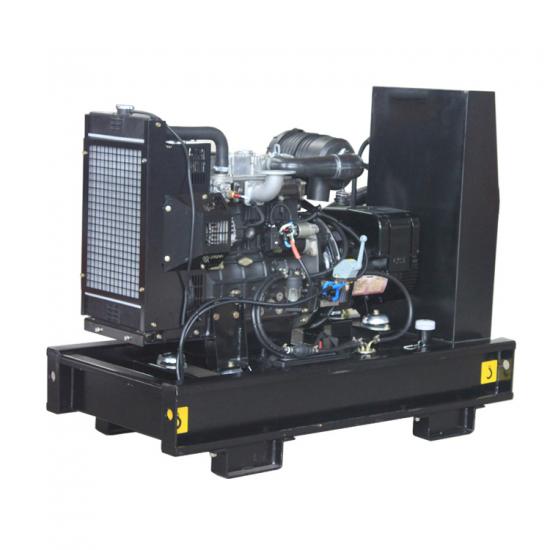

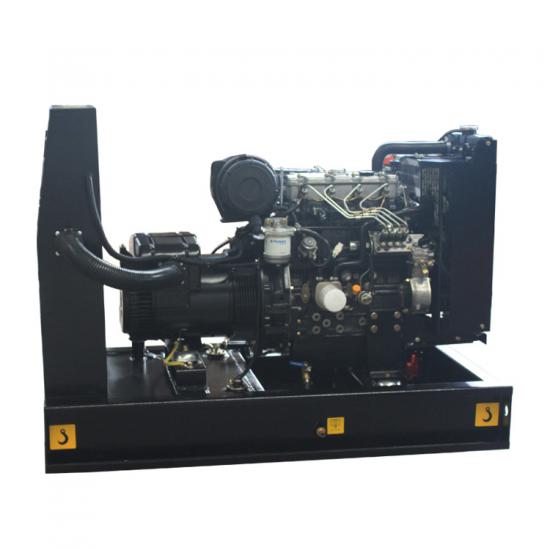

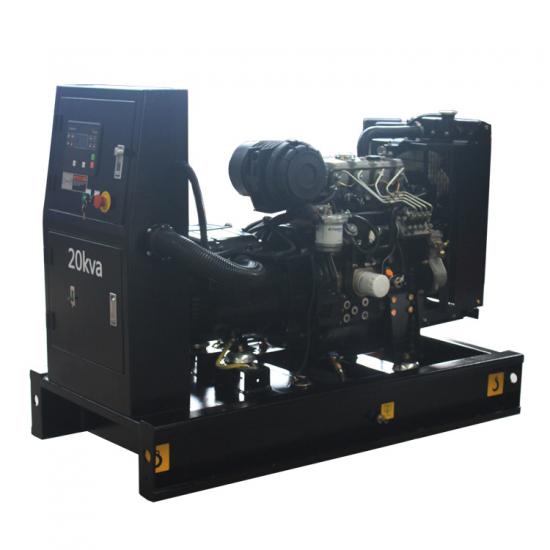

BA Power 20Kva  perkins generator open type diesel generator
  • item no.:

    BP22
  • lead time:

    2-4 weeks
  • product orgin:

    China
  • brand:

    Perkins
  • shipping port:

    Xiamen, China
  • payment:

    T/T 30%, 70% or LC 100% at sight.
  • price:

    $5300/each
  • price range:

    4000-7000/1$
  • product details

BA Power 20KVA Generator Supliers Powered By Perkins Engine Stamford alternator

Engine Model: 404A-22G1

Alternator Model: PI 144D

Gross engine power:18.7kw

Number of cylinders: 4

Cylinder arrangement: Vertical in-line

Cycle:four stroke

Induction system:Naturally aspirated

Compression ratio:23:1

Bore*Stroke:84*100mm

Cubic capacity:.1·131 litres

Direction of rotation:anti-clockwise viewed from flywheel

anti-clockwise viewed from flywheel:1,3,4,2

Estimated total weight (dry):242 kg

Electrical system

alternator. 15 amps, 12V

starter motor.2 kW, 12V

Low Fuel consumption Generator Set

110%: 244g/kWh (6.1)  (litres/hr)

100% :  237 g/kWh (5.3)  (litres/hr)

 75%: 238 g/kWh(4.0) (litres/hr)

 50%: 258 g/kWh  (2.9) (litres/hr)


Fuel system

Type of injection: Indirect injection

Fuel injection pump: Cassette type

Fuel injector.:...Pintle nozzle

Nozzle opening pressure:14.7 MPa

Max. particle size.:25 microns

Lubrication system

Lubricating oil capacity

Max. sump capacity: 10.6 litres

Min. sump capacity:8.9 litres

Maximum engine operating angles
-front up, front down, right side or left side:35° continuous

Lubricating oil pressure

relief valve opens . 352 - 448kP

Min. oil pressure:120 kPa

at maximum no-load speed..TBA

Oil flow at rated speed ..109 litres/min

Normal oil temperature..125°C






Alternator Specs

Model: PI144D

CONTROL SYSTEM:STANDARD AS480 AVR (SELF EXCITED)

VOLTAGE REGULATION:± 1.0 %

SUSTAINED SHORT CIRCUIT:SELF EXCITED MACHINES DO NOT SUSTAIN A SHORT CIRCUIT CURRENT

STATOR WINDING: DOUBLE LAYER CONCENTRIC

WINDING PITCH:TWO THIRDS

WINDING LEADS: 12

MAXIMUM OVERSPEED:2250 Rev/MiN

STATOR WDG. RESISTANCE:0.377 Ohms PER PHASE AT 22°C SERIES STAR CONNECTED

ROTOR WDG. RESISTANCE:0.657 Ohms at 22°C

EXCITER STATOR RESISTANCE:18.5 Ohms at 22°C

EXCITER ROTOR RESISTANCE:0.228 Ohms PER PHASE AT 22°C

EBS STATOR RESISTANCE:12.9 Ohms at 22°C

R.F.I. SUPPRESSION:BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others

WAVEFORM DISTORTION:NO LOAD < 1.5% NON-DISTORTING BALANCED LINEAR LOAD < 5.0%

BEARING:Single

Insulation: H

Protection Degree: IP 23

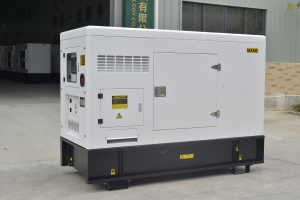

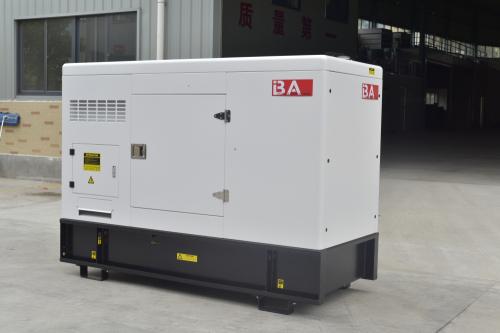

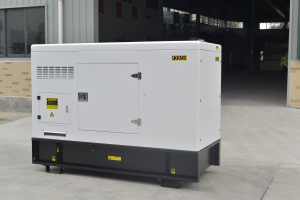

Silent Type Perkins Diesel Generator with normal silent, super silent and container type canopy for options, with single door, double doors, top lifting structure for options.

Perkins 50kva

The low-noise unit adopts a special high-efficiency weight-reducing muffler unit body as a combination, which is easy to install, maintain and has a firm structure. The chassis is double-layered and equipped with a shock absorbing device. A control screen observation window is opened on the cabinet for easy observation. Built-in fuel tank.

If need on any more information, feel free to contact us at any time.
