Wandi diesel generator sets

Wuxi Power engineering CO., LTD is one of subsidiary companies in "Wandi Group" with others: Wuxi Cummins Turbo Technology (turbocharge). Wandi Precision Machining (engine block) and Wuxi Vane Wheel Equipment (fan of turbocharge). Wuxi Power Engineering specialized in developing and manufacturing off-way diesel engines and other synchronous product. Wandi was assessed as the top 500 engine manufacturer.

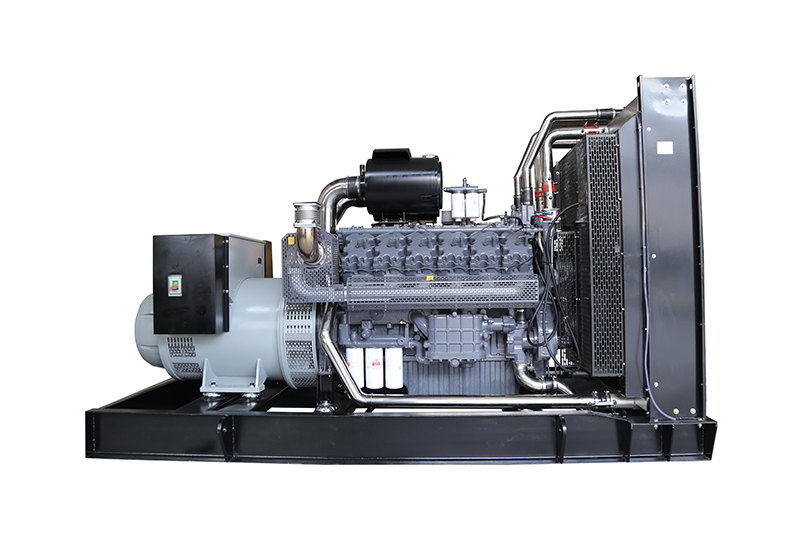

Generator Set standard configuration:

• Assembled by Wandi diesel engine with start motor and world famous alternator
• Radiator and fan with safety guard.
• Heavy duty steel channel base frame with/without fuel tank for your options.
• Vibration damping supports between Engine/Alternator and base frame.
• Float Battery Charger and Solenoid Switch as the standard supply.
• High capacity lead acid battery with battery cables.
• Automatic control panel and electrically output switch cabinet.
• Standrad tool kits and complete operation manual for the genset, engine, alternator, control system, etc.

Engine:

Wandi engines has the power from 25kw to 1200kw, manufactured under the strict management ISO 9001: 2008. ISO 14001: 2004. and OHSAS 18001:2007. Awarded as five-star by National Product Quality As sociation. With long-term development strategy, Wandi perseveres in developing and researching, constantly applying advanced technology in every single products. Wandi engines are applied advanced technologies such as BOSCH high - pressure injecting technologies, HOLSET turbo technologies to improve performance. Company keep main block technology in own hands to keep engines' quality and All parts on engine come from top supplier in china. Wandi engines are still working for Beijing International Airport and Shanghai International Airport as the emergency power and fire fight power now.

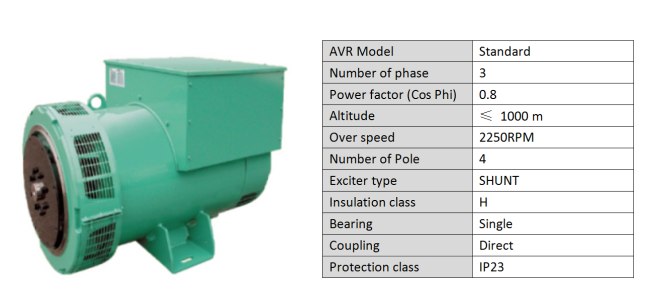

Alternator:

We adopts world famous brand alternator like Leroy-somer, stamford, brushless synchronous alternator, based on a variety of operating voltage requirement, optimizing winding design and effectively eliminating the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG(optional), in with superior performance in generating non-linear loads.

• Form: Single/Double Bearing
• Protection: IP23 (IP44 is optional)
• Balance: Rotator Balance in accordance with ISO1940 and NFC51-112 Standard
• Overspeed: 2250rpm
• Insulation Class: H
• Mechanical Structure: Steel Base Frame

Control System

We adopt UK deepsea 6120 as the standard supply model, and Smartgen and Czech Comap is optional. which has below features and protection function:

• Low oil Pressure
• High water temperature
• High voltage and low voltage
• Over current and over speed
• Voltage adjuster and Frequency Adjuster
• Emergency power stop
• Low fuel alarm and shutdown
• Low coolant alarm and shutdown

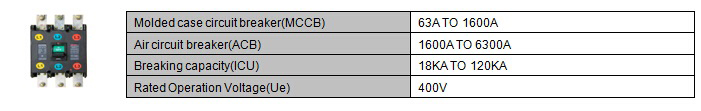

Circuit Breaker

Starting Battery

Soundproof Canopy

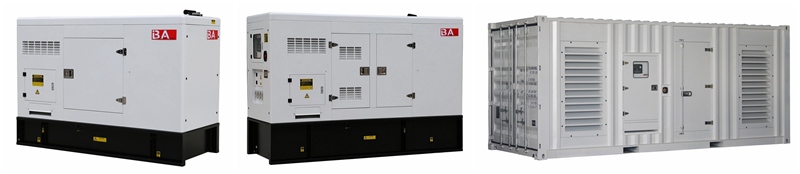

BA Power silent canopy with normal silent, super silent, imitate container and standard sea container type canopy are all available, which has below features:

• More than 2mm thick steel to make the canopy
• High quality paint materials and strict powder paint
• Impedance combined type silencer
• Stainless steel door locks and hinges and 180 degree revolvable and disassemble door
• High quality soundproof and insulation materials
• Transparent viewing window
• Lifting ears mounted in the base frame
• Standard 20 feet, 40 feet and 40HQ container canopy for option

Other Optional Supply Scope

ATS, Syn.panel, Trailer, External Fuel tank, Lub.oil Heater, Electrical Coolant Heater, Water and Fuel Separator, Fuel Drain Pump, Auto Fuel Pump, other spare parts etc.
