• 1. Assembled by Cummins diesel engine with start motor.
• 2. High quality brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
• 3. Heavy duty steel channel base frame with fuel tank for your options.
• 4. Heavy duty industrial type silencer with flexible bellow.
• 5. Vibration damping supports between Engine/Alternator and base frame.
• 6. Radiator with safety guard.
• 7. Auto mains failure control panel, Deepsea,Comap or smartgen for your options
• 8. High capacity lead acid battery with battery cables.
• 9. 3-pole output manual circuit breaker.
• 10. Skid-mounted bottom fuel tank for 8hrs full load as standard supply or customized for the fuel capacity.
• 11. Standrad tool kits and complete operation/maintenance/manuals to Engine/Alternator/control panel,etc.

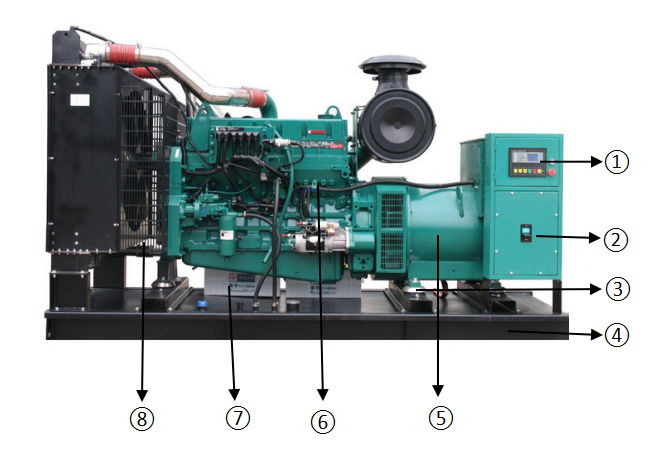

Open Type Silent Type or Container Type Cummins Generator Sets
①Control Panpel

②Switch Cabinet
③Vibration damping supports among engine, alternator and base frame.
④Base Frame

⑤Alternator

⑥Engine

⑦Starting Battery

⑧Cooling Radiator

BA Power Diesel Gensets use deepsea control panel model no. 6120 as the standard supply, and other models and brands are optional as below:

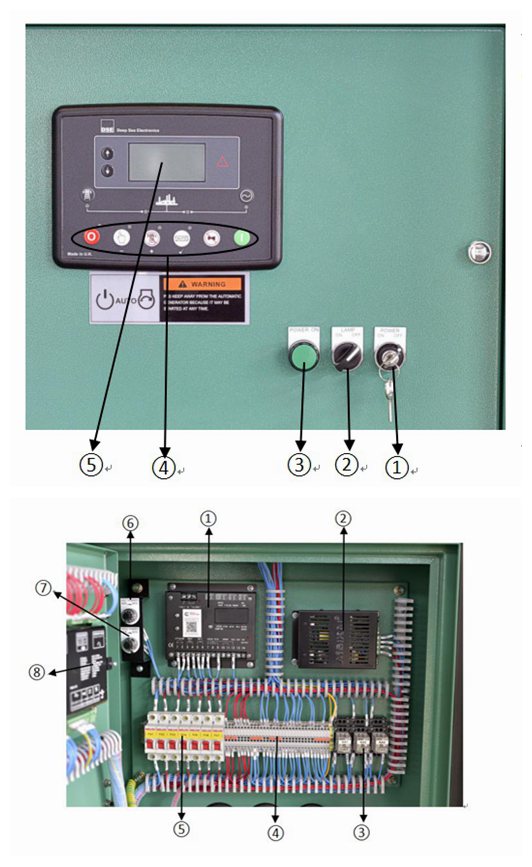

Generator Set Deepsea control panel
① Power on-off Switch
② Lamp on-off Switch
③ Power Indicator
④ Operation Buttons
⑤ LCD display

Protection Function:
♦Low Oil Pressure
♦High water Temperature
♦High voltage and low voltage
♦Overspeed
♦Volt adjuster and frequency adjuster.
♦Emergency stop
♦Fail to start




Power Generator Set controller inside
①Speed Controller
②Mains Battery Charger
③Protection Relay
④Wiring Connection Terminals
⑤MCCB using for Protection
⑥Voltage Trimmer
⑦Speed Trimmer
⑧Engine Generator Controller
